Fusion 12 Maple

SKU 99-750-0250

FIND A DEALER

Horizontal front view of Fusion 12 Maple

Horizontal front view of Fusion 12 Maple thumb

Close-up back body view of Fusion 12 Maple thumb

Close-up side and back body view of Fusion 12 Maple thumb

Vertical back view of Fusion 12 Maple thumb

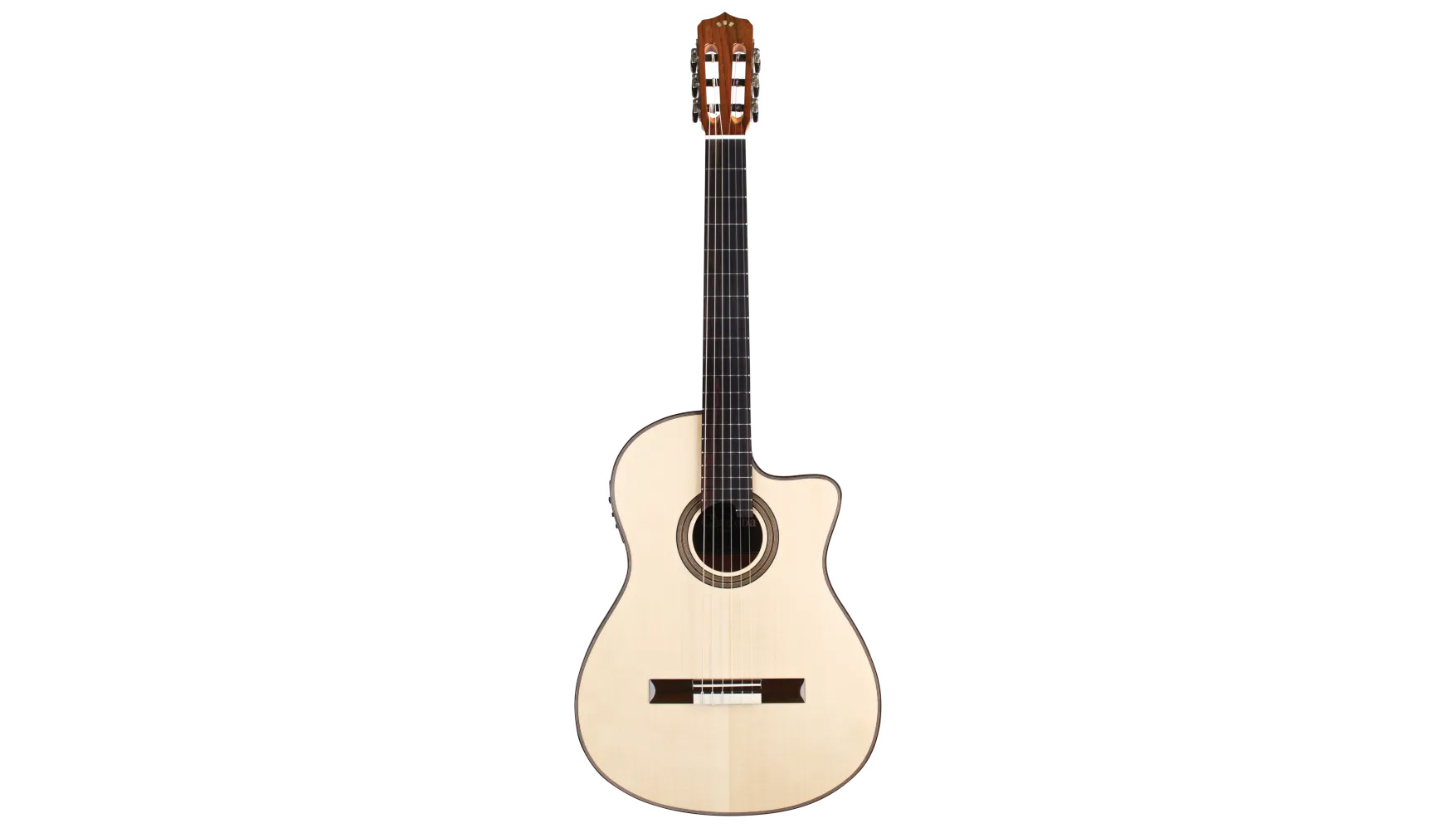

Vertical front view of Fusion 12 Maple thumb

Close-up headstock view of Fusion 12 Maple thumb

Close-up view of Fusion 12 Maple electronics control thumb

Top down view of Fusion 12 Maple neck thumb

Close-up front body view of Fusion 12 Maple thumb

Meet the Maple, a beautiful crossover guitar that features a solid European Spruce top and flamed Maple back and sides for a bright, snappy tone and sweetly pronounced high end. Other than its strikingly beautiful back, the 12 Maple's main feature is its slim steel-string feeling neck (48mm nut width) and 16" radius fingerboard. Available with 12 frets to the body, the Maple is ready for the stage with its Fishman Presys Blend preamp.

KEY FEATURES

Construction	Solid Top
Family	Cutaway & Electric
Style	Fusion

MATERIAL

Bridge Material	Pau Ferro
Fingerboard Material	Ebony
Neck Material	Mahogany
Nut Material	Bone
Saddle Material	Bone

BODY

Back and Sides Wood	Flamed Maple
Body Top	Solid European Spruce
Build	Fusion
Color	Natural (NAT)
Finish	Polyurethane
Frets to Body	12
Neck Joint	Dovetail
Neck Shape	Fusion C Shape
Top Bracing Pattern	Fan

NECK

Fingerboard Binding	N / A
Frets Total	19
Headplate	Pau Ferro
Headstock Logo	Córdoba Arches Logo - Mother-of-Pearl
Nut String Spacing	40mm
Truss Rod	Dual Action
Truss Rod Wrench	4mm Allen Key
Tuning Machines	Córdoba Silver with Black Buttons

ELECTRONICS

Battery Pack	Inside Preamp Compartment - 9V
Battery Pack Installation Location	Flip Up Preamp
Electronics	Fishman Presys Blend
Controls	N / A
Pickup Type	Undersaddle Piezo + Microphone, Onboard Tuner
Tuning Machine Buttons	Black

DIMENSION & WEIGHT

Body Depth Lower Bout	100mm (4")
Body Depth Upper Bout	95mm (3 3/4")
Body Length	483mm (19")
Fret Dimensions	2.0mm (W) x 1.1mm (H)
Lower Bout Width	368mm (14 1/2")
Neck Thickness 1st Fret	21mm
Neck Thickness 9th Fret	24mm
Nut Width	48mm (1 7/8")
Overall Length	978mm (38 1/2")
Scale Length	650mm (25.6")
Shipper Carton Dimensions	104 x 47 x 14 (cm)
Upper Bout Width	279mm (11")
Waist Width	235mm (9 1/4")

OTHER

Back Bracing	N / A
Country of Origin	China
Does it contain shell?	Yes - MOP
Exclusive	No
Included Case	Case Sold Separately
Number of Strings	6
Strings	Savarez Alliance / Cantiga High Tension 510AJ
Top Binding	Pau Ferro
Tuning	E-A-D-G-B-E
