Cordoba

Fusion 14 Maple

Key Features
  • Construction: Solid Top
  • Family: Cutaway & Electric
  • Style: Fusion
Share

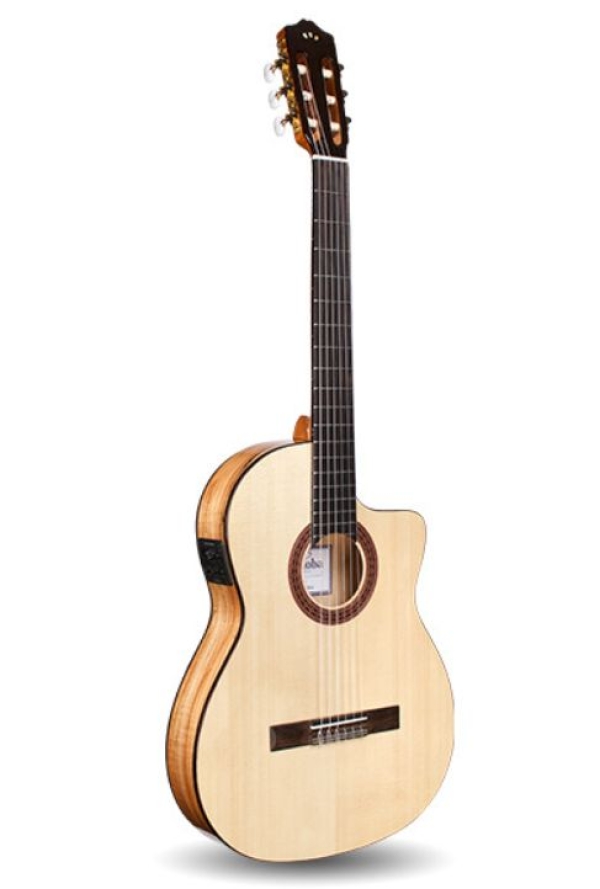

Meet the Maple, a beautiful crossover guitar that features a solid European spruce top and flamed maple back and sides for a bright, snappy tone and sweetly pronounced high end. Other than its strikingly beautiful back, the 12/14 Maple's main feature is its slim steel-string feeling neck (48mm nut width) and 16" radius fingerboard. Available with 12 or 14 frets to the body, the Maple is ready for the stage with its Fishman Presys Blend preamp.

Find a Dealer
Specifications
Construction Solid Top
Family Cutaway & Electric
Style Fusion
Bridge Material Pau Ferro
Fingerboard Material Ebony
Neck Material Mahogany
Nut Material Bone
Saddle Material Bone
Back and Sides Wood Flamed Maple
Back Binding Pau Ferro
Back Center Strip Pau Ferro
Back Purfling Inlay 3-Ply Maple and Black
Body Top Solid European Spruce
Build Fusion
Color Natural (NAT)
Finish Gloss Polyurethane
Frets to Body 14
Neck Joint Dovetail
Neck Shape Crossover C Shape
Top Bracing Pattern Fan
Waist Width 235mm (9 1/4")
Battery Pack Inside Preamp Compartment - 9V
Battery Pack Installation Location Flip Up Preamp
Electronics Fishman Presys Blend
Tuning Machine Buttons Black
Tuning Machine Ratio 14:1
Body Depth Lower Bout 100mm (4")
Body Depth Upper Bout 95mm (3 3/4")
Body Length 483mm (19")
Fret Dimensions 2.0mm (W) x 1.1mm (H)
Lower Bout Width 368mm (14 1/2")
Master Carton Dimensions 112x58x69 (cm) - Cordoba Triangle Master Carton (6 Pack)
Neck Thickness 1st Fret 21mm
Neck Thickness 9th Fret 24mm
Nut Width 48mm (1 7/8")
Overall Length 1013mm (39 7/8")
Scale Length 640mm (25.2")
Shipper Carton Dimensions 104 x 47 x 14 (cm) - Cordoba Guitar Triangle Box (No Case)
Soundhole Diameter 84mm (3.3")
Target Instrument Weight 3.5 lbs / 1.6 kg
Upper Bout Width 279mm (11")
Country of Origin China
Does it contain shell? Yes - MOP
Electronics Vendor & Model Fishman OEM-PSY-B03
Exclusive No
Frets Total 19
Headplate Pau Ferro
Headstock Logo Cordoba Arches Logo - Mother-of-Pearl
Included Case Case Sold Separately
Item Number 05411
Number of Strings 6
Nut String Spacing 40mm
pcid 1
Pickup Type Undersaddle Piezo + Microphone, Onboard Tuner
psid 4
Rosette Maple and Black Rings
Side Purfling Inlay 3-ply Maple and Black
Strings Savarez Alliance /Cantiga High Tension 510AJ
Tail Strip Pau Ferro
Top Binding Pau Ferro
Top Purfling Inlay 6-ply Maple and Black
Truss Rod Dual Action
Truss Rod Wrench 4mm Allen Key
Tuning E-A-D-G-B-E
Tuning Machines Cordoba Silver with Black Buttons
Tuning Machines Vendor & Model Der Jung DJ206CK-P12 (S3)
Due to ongoing product development efforts, exact specifications are subject to change from time to time.
